Mono, Class-AB audio amplifier delivering 3W output power into a 3Ω load. Features analog input and operates from a 2V to 5.5V supply voltage. Boasts a 60dB Power Supply Rejection Ratio (PSRR) and a quiescent current of 6.5mA. Encased in an 8-pin MSOP package, this surface-mount component is RoHS compliant and operates across a temperature range of -40°C to 85°C.
PackageMSOP
MountingSurface Mount
Power3W
Quick Jump:
Technical Specifications
Texas Instruments LM4871MM/NOPB technical specifications.
General
Package/Case
MSOP
Height
0.86mm
Lead Free
Lead Free
Length
3mm
Load Impedance
3R
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
3W
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Channels
1
Output Power
3W
Packaging
Cut Tape
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
6.5mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Boomer®
Termination
SMD/SMT
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4871MM/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4871MM/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

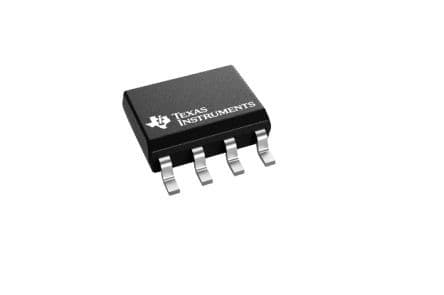

Product Images
