Texas Instruments
LM49100GR/NOPB
Mono Class AB Audio Sub-System with a True-Ground Headphone Amplifier 25-csBGA -40 to 85
PackageTFBGA
Current7.4mA
MountingSurface Mount
Power1.575W
Quick Jump:
Technical Specifications
Texas Instruments LM49100GR/NOPB technical specifications.
General
| Package/Case | TFBGA |
| Dual Supply Voltage | 5V |
| Features | I²C |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 1.575W |
| Mount | Surface Mount |
| Number of Channels | 3 |
| Output Power | 1.575W |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 90dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Boomer® |
| Supply Current | 7.4mA |
| Supply Type | Triple |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM49100GR/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM49100GR/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

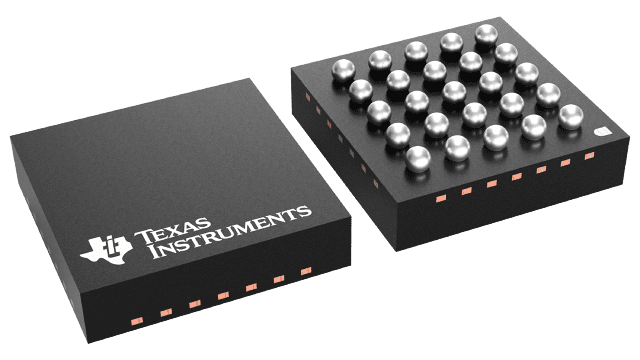

Product Images
