Texas Instruments

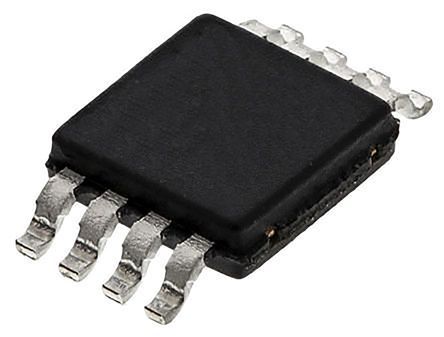

LM4923MM/NOPB
1.1 Watt Fully Differential Audio Power Amplifier With Shutdown Select 8-VSSOP -40 to 85
PackageMSOP
Current4mA
MountingSurface Mount
Power1.1W
Quick Jump:
Technical Specifications
Texas Instruments LM4923MM/NOPB technical specifications.
General
Package/Case
MSOP
Common Mode Rejection Ratio
50dB
Height
0.86mm
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
1.1W
Max Supply Voltage
5.5V
Min Supply Voltage
2.4V
Mount
Surface Mount
Output Power
1.1W
Package Quantity
1000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
85dB
Radiation Hardening
No
RoHS Compliant
Yes
Series
Boomer®
Supply Current
4mA
Supply Type
Single
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4923MM/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4923MM/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
