Stereo Class-AB audio amplifier IC, delivering 6W per channel. Features a 10V to 16V single supply voltage range and operates from -40°C to 85°C. Analog input with a 56dB Power Supply Rejection Ratio (PSRR). Packaged in a TO-263-9 (DDPAK) surface-mount case, supplied on tape and reel. RoHS compliant.
PackageTO-263-9
Current16mA
Power6W
Quick Jump:
Technical Specifications
Texas Instruments LM4940TSX/NOPB technical specifications.
General
| Package/Case | TO-263-9 |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 6W |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 10V |
| Number of Channels | 2 |
| Output Power | 6W |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 56dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Boomer® |
| Supply Current | 16mA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM4940TSX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4940TSX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

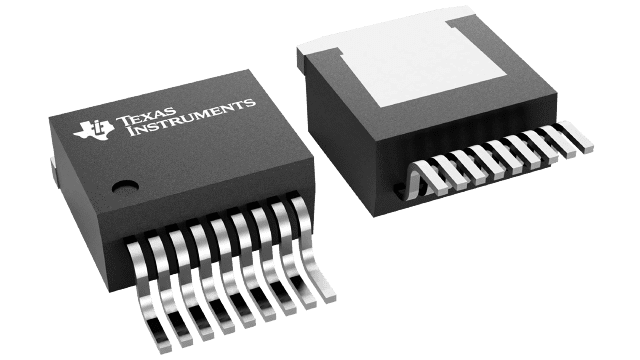

Product Images
