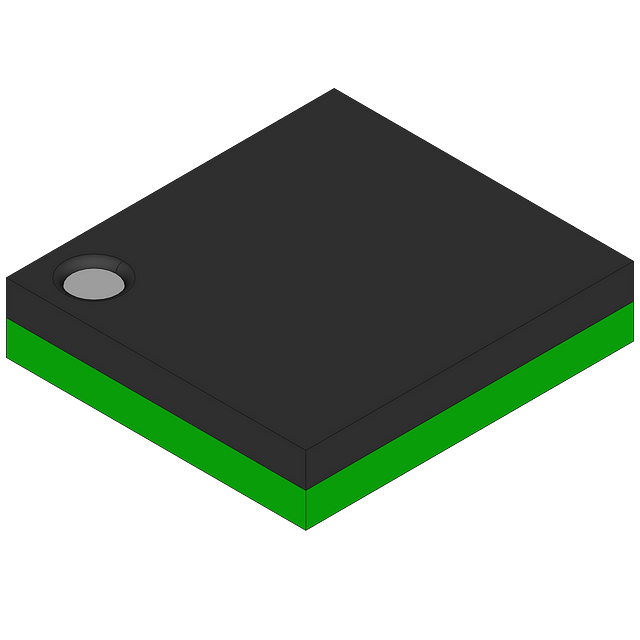

Dual audio amplifier IC featuring 2.5W maximum output power per channel. Offers a wide operating supply voltage range from 2.4V to 5.5V, with a dual supply voltage of 5V. Includes I²C interface for control and boasts a Common Mode Rejection Ratio of 64.4dB and Power Supply Rejection Ratio (PSRR) of 73.8dB. This surface-mount component is housed in a 25-pin BGA package with dimensions of 2.69mm (L) x 2.69mm (W) x 0.36mm (H).
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM4949TL/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LM4949TL/NOPB technical specifications.
| Package/Case | SMD/SMT |
| Common Mode Rejection Ratio | 64.4dB |
| Dual Supply Voltage | 5V |
| Features | I²C |
| Height | 0.36mm |
| Lead Free | Contains Lead |
| Length | 2.69mm |
| Max Dual Supply Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 2.5W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.4V |
| Mount | Surface Mount |
| Number of Channels | 5 |
| Output Power | 2.5W |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 73.8dB |
| Quiescent Current | 4.3mA |
| RoHS Compliant | Yes |
| Series | Boomer® |
| Supply Current | 9.9mA |
| Supply Type | Quad |
| Width | 2.69mm |
| RoHS | Compliant |
