Texas Instruments
LM4950TS/NOPB
3.1-W, mono, 9.6- to 16-V, analog input Class-AB audio amplifier 9-DDPAK/TO-263 -40 to 85
PackageTO-263
MountingSurface Mount
Power3.1W
Quick Jump:
Technical Specifications
Texas Instruments LM4950TS/NOPB technical specifications.
General
| Package/Case | TO-263 |
| Input Offset Voltage (Vos) | 30mV |
| Lead Free | Contains Lead |
| Load Impedance | 8R |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 7.5W |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 9.6V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Operating Supply Voltage | 15V |
| Output Power | 3.1W |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 70dB |
| Quiescent Current | 16mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Boomer® |
| Supply Type | Single |
| Thickness | 4.572mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM4950TS/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4950TS/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

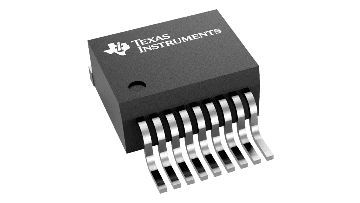

Product Images
