Texas Instruments
LM4951ASD/NOPB
1.8-W, mono, 2.7- to 9-V, analog input Class-AB audio amplifer & short circuit protection 10-WSON -40 to 85
1.8-W, mono, 2.7- to 9-V, analog input Class-AB audio amplifer & short circuit protection 10-WSON -40 to 85
Current2.5mA
MountingSurface Mount
Power2.2W
Quick Jump:
Technical Specifications
Texas Instruments LM4951ASD/NOPB technical specifications.
General
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 1.8W |
| Max Supply Voltage | 9V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Power | 2.2W |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 66dB |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Boomer® |
| Supply Current | 2.5mA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM4951ASD/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4951ASD/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

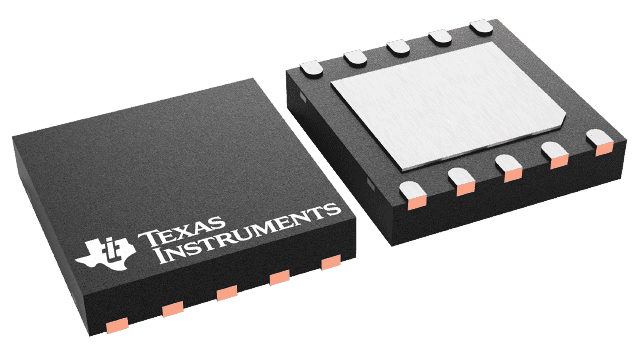

Product Images
