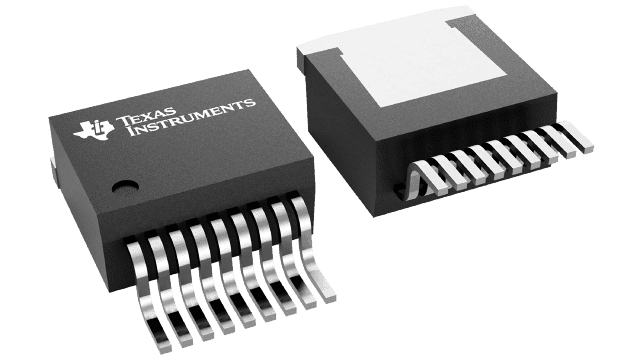

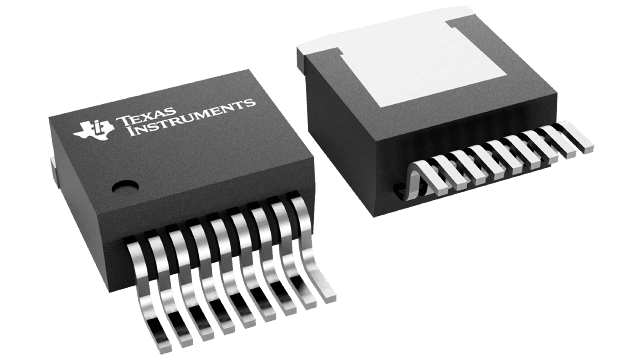

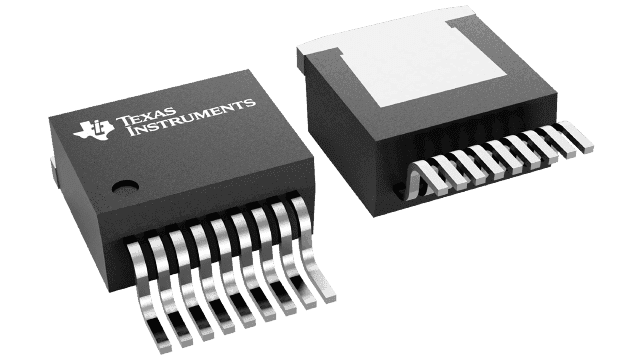

The LM4952TSX/NOPB is a dual-channel audio IC from Texas Instruments, featuring a voltage gain of 20dB per channel. It operates within a temperature range of -40°C to 85°C and is available in a TO-263 package. The device is RoHS compliant and has a maximum output power of 3.8W. It is designed for single-supply operation with a maximum supply voltage of 16V and a minimum supply voltage of 9.6V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM4952TSX/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LM4952TSX/NOPB technical specifications.
| Package/Case | TO-263-9 |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 3.8W |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 9.6V |
| Number of Channels | 2 |
| Operating Supply Voltage | 15V |
| Output Power | 3.8W |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 89dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Boomer® |
| Supply Type | Single |
| Voltage Gain | 20dB |
| RoHS | Compliant |
