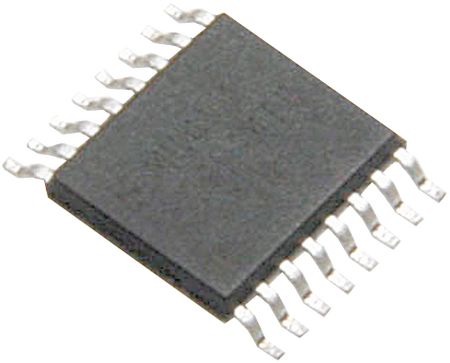

2A current mode non-synchronous boost regulator with adjustable output voltage up to 75V. Features a wide input voltage range of 3.1V to 40V and 90% efficiency. Operates from -40°C to 125°C in a 16-TSSOP surface mount package. This flyback topology regulator offers a quiescent current of 2.1mA and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM5000-3MTC/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LM5000-3MTC/NOPB technical specifications.
| Package/Case | TSSOP |
| Efficiency | 90% |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 3.1V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 2A |
| Output Type | Adjustable |
| Output Voltage | 75V |
| Packaging | Rail/Tube |
| Quiescent Current | 2.1mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Topology | Flyback |
| Width | 4.4mm |
| RoHS | Compliant |
Download the complete datasheet for Texas Instruments LM5000-3MTC/NOPB to view detailed technical specifications.
