Constant On-Time Non-Synchronous Buck Regulator, featuring a wide 9.5V to 95V input voltage range and a 350mA maximum output current. This power management IC operates at a 600kHz switching frequency, achieving up to 92% efficiency. It supports adjustable output voltages from 2.5V up to 75V and is housed in a compact 8-VSSOP (MSOP) surface-mount package. Designed for operation across a -40°C to 125°C temperature range, this lead-free component is ideal for demanding power applications.
Frequency600kHz
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5008MM/NOPB technical specifications.
General
Package/Case
MSOP
Efficiency
92%
Frequency
600kHz
Lead Free
Lead Free
Max Input Voltage
95V
Min Input Voltage
9.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
350mA
Max Output Voltage
75V
Min Output Voltage
2.5V
Min Supply Voltage
9.5V
Mount
Surface Mount
Number of Channels
1
Number of Outputs
1
Output Configuration
Positive
Output Current
350mA
Output Type
Adjustable
Output Voltage
75V
Package Quantity
1000
Packaging
Tape and Reel
Quiescent Current
485uA
Radiation Hardening
No
Reach SVHC Compliant
No
Synchronous Rectifier
No
Termination
SMD/SMT
Thickness
970um
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM5008MM/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM5008MM/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

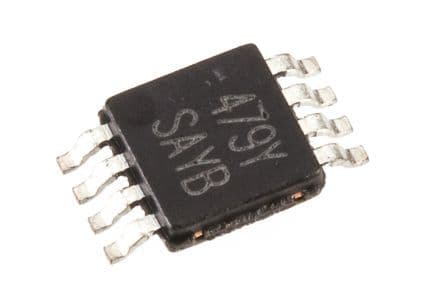

Product Images
