Constant On-Time Non-Synchronous Buck Regulator, featuring a wide 6-75V input voltage range and 1A maximum output current. This power management IC offers adjustable output voltage from 2.5V up to 70V, with a peak efficiency of 91%. Designed for surface mount applications, it is housed in a compact 14-HTSSOP EP package (5mm x 4.4mm x 0.9mm) and operates across a temperature range of -40°C to 125°C. The regulator boasts a low quiescent current of 650uA and is RoHS compliant.
PackageHTSSOP EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5010AMH/NOPB technical specifications.
General
| Package/Case | HTSSOP EP |
| Efficiency | 91% |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Input Voltage | 75V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 70V |
| Min Output Voltage | 2.5V |
| Min Supply Voltage | 6V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 75V |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 70V |
| Packaging | Rail/Tube |
| Quiescent Current | 650uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LM5010A |
| Synchronous Rectifier | No |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM5010AMH/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM5010AMH/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

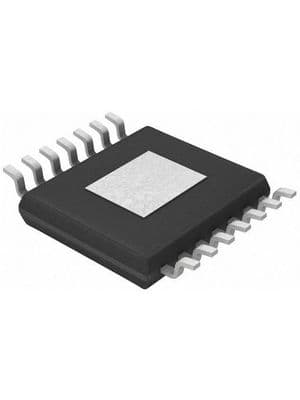

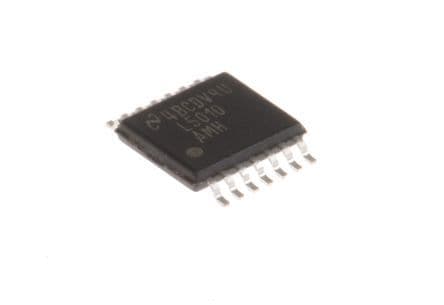

Product Images
