Texas Instruments
LM5010ASD

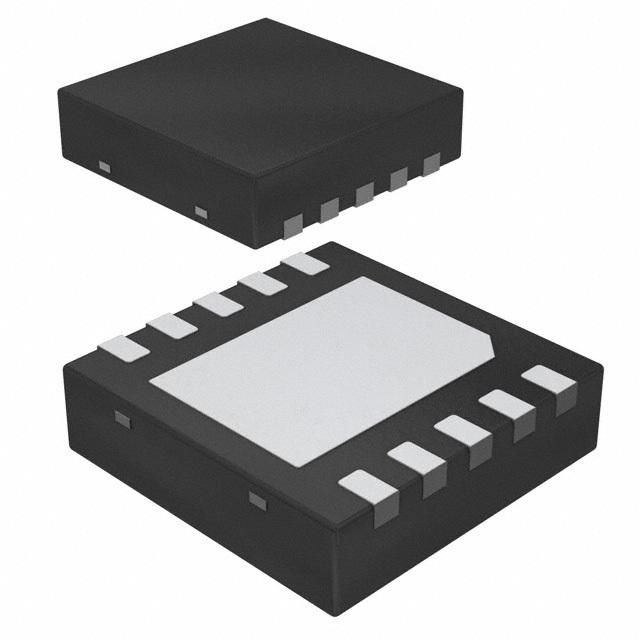

6-75V Wide Vin, 1A Constant On-Time Non-Synchronous Buck Regulator 10-WSON -40 to 150
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5010ASD technical specifications.
General
Efficiency
91%
Lead Free
Contains Lead
Max Input Voltage
75V
Min Input Voltage
6V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
70V
Min Output Voltage
2.5V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
75V
Output Configuration
Positive
Output Current
1A
Output Type
Adjustable
Output Voltage
70V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
650uA
RoHS Compliant
No
Synchronous Rectifier
No
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM5010ASD Datasheet
Download the complete datasheet for Texas Instruments LM5010ASD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
