Texas Instruments
LM5010ASDX/NOPB
6-75V Wide Vin, 1A Constant On-Time Non-Synchronous Buck Regulator 10-WSON -40 to 150
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5010ASDX/NOPB technical specifications.
General
Efficiency
91%
Lead Free
Lead Free
Max Input Voltage
75V
Min Input Voltage
6V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
70V
Min Output Voltage
2.5V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
75V
Output Configuration
Positive
Output Current
1A
Output Type
Adjustable
Output Voltage
70V
Package Quantity
4500
Packaging
Tape and Reel
Quiescent Current
650uA
Radiation Hardening
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM5010ASDX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM5010ASDX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

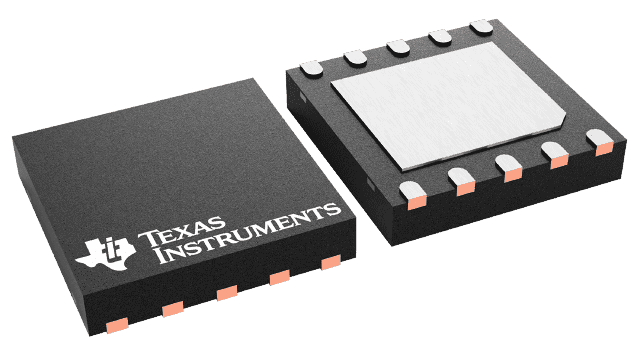

Product Images
