1A adjustable DC/DC switching regulator with a maximum switching frequency of 1MHz. Features a wide input voltage range of 8V to 75V and a maximum output voltage of 70V. Offers up to 91% efficiency and a single positive output. Packaged in a 10-lead surface-mount (SMD/SMT) LLP package, suitable for tape and reel packaging.
Frequency1MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5010SD technical specifications.
General
Efficiency
91%
Frequency
1MHz
Lead Free
Contains Lead
Max Input Voltage
75V
Min Input Voltage
8V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
70V
Min Output Voltage
2.5V
Max Supply Voltage
75V
Min Supply Voltage
8V
Mount
Surface Mount
Number of Outputs
1
Output Configuration
Positive
Output Current
1A
Output Type
Adjustable
Output Voltage
70V
Package Quantity
1000
Packaging
Tape and Reel
Quiescent Current
650uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Series
LM5010
Synchronous Rectifier
No
Termination
SMD/SMT
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM5010SD Datasheet
Download the complete datasheet for Texas Instruments LM5010SD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

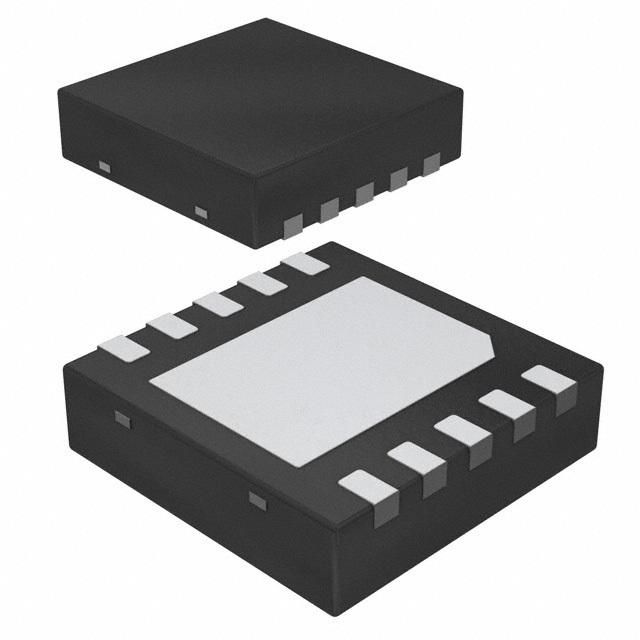

Product Images
