Texas Instruments
LM5015MHE/NOPB
4.25-75V, Monolithic Two-Switch Forward DC-DC Regulator 14-HTSSOP -40 to 125
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5015MHE/NOPB technical specifications.
General
Package/Case
HTSSOP
Efficiency
87%
Lead Free
Lead Free
Max Input Voltage
75V
Min Input Voltage
4.75V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
37V
Min Output Voltage
1.26V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
75V
Output Current
1.2A
Output Type
Adjustable
Output Voltage
37V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
110uA
Radiation Hardening
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Topology
Flyback, Forward Converter
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM5015MHE/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM5015MHE/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

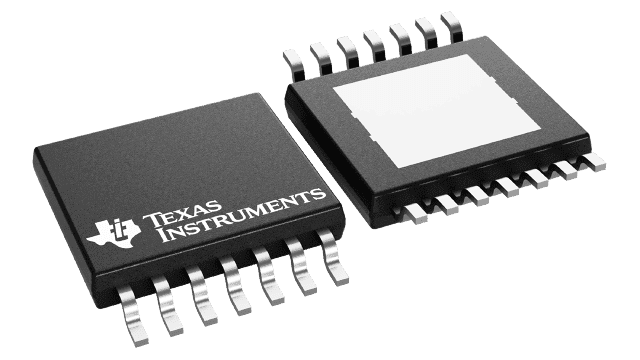

Product Images
