The LM5015MHX/NOPB is a surface mount DC/DC controller with an adjustable output voltage of 1.26 to 37V and a maximum output current of 1A. It operates over a temperature range of -40°C to 125°C and is RoHS compliant. The device is packaged in a 14-pin HTSSOP package and is available in quantities of 2500 units per reel. The LM5015MHX/NOPB has an efficiency of 87% and a quiescent current of 110uA.
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5015MHX/NOPB technical specifications.
General
| Package/Case | HTSSOP |
| Efficiency | 87% |
| Lead Free | Lead Free |
| Max Input Voltage | 75V |
| Min Input Voltage | 4.75V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 37V |
| Min Output Voltage | 1.26V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 75V |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Quiescent Current | 110uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Flyback, Forward Converter |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM5015MHX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM5015MHX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

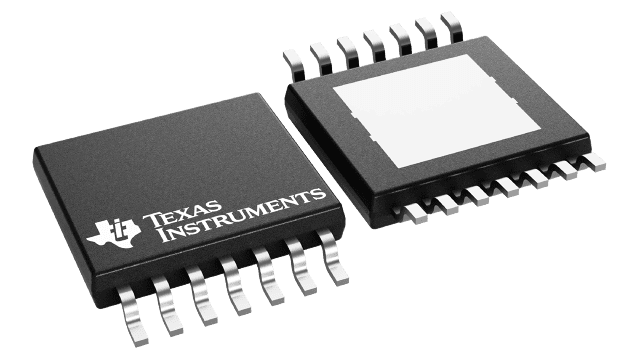

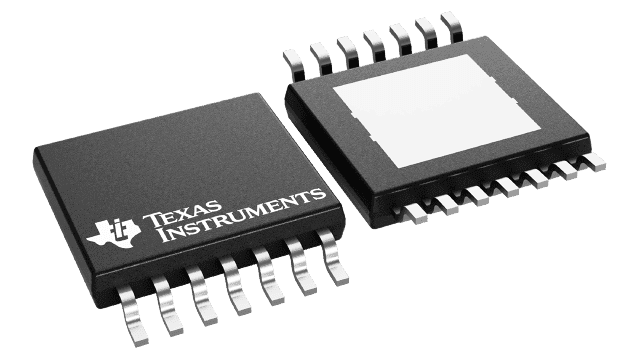

Product Images
