The LM5030SD/NOPB is a dual output DC/DC controller with a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It has a maximum supply voltage of 8V and an operating supply voltage of 7.7V. The device is designed for surface mount applications and is packaged in a tape and reel format. The LM5030SD/NOPB is RoHS compliant and has a maximum output current of 1.5A. It operates with a maximum duty cycle of 50% and has a fall time of 16ns.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5030SD/NOPB technical specifications.
General
| Clock Sync | No |
| Duty Cycle | 49% |
| Fall Time | 16ns |
| Height | 0.95mm |
| Isolation | Non-Isolated |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Duty Cycle | 50% |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Output Phases | 1 |
| Number of Outputs | 2 |
| Operating Supply Current | 2mA |
| Operating Supply Voltage | 7.7V |
| Output Current | 1.5A |
| Output Voltage | 16V |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Push-Pull |
| Width | 3.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM5030SD/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM5030SD/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

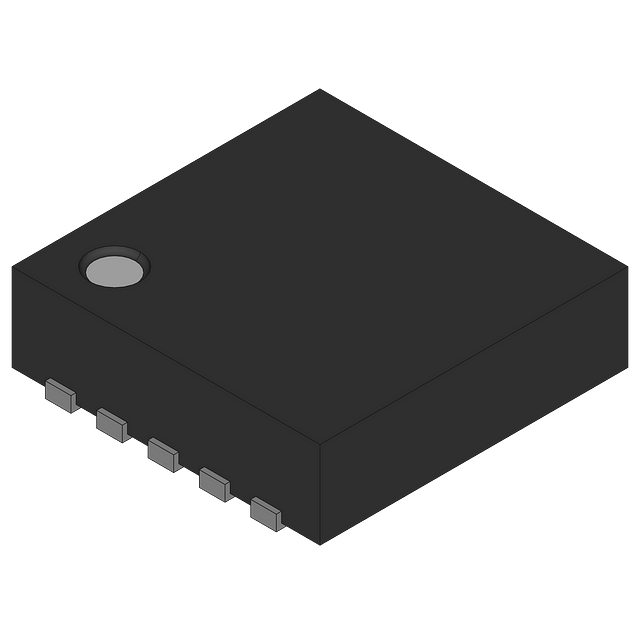

Product Images
