Dual interleaved active clamp current mode controller for DC/DC power conversion. Features a 100V maximum supply voltage, 2MHz operating frequency, and 76% maximum duty cycle. Supports up to 600W output power with a 2.5A output current and 15V output voltage. Packaged in a 20-TSSOP for surface mounting, operating from -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM5034MTC/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

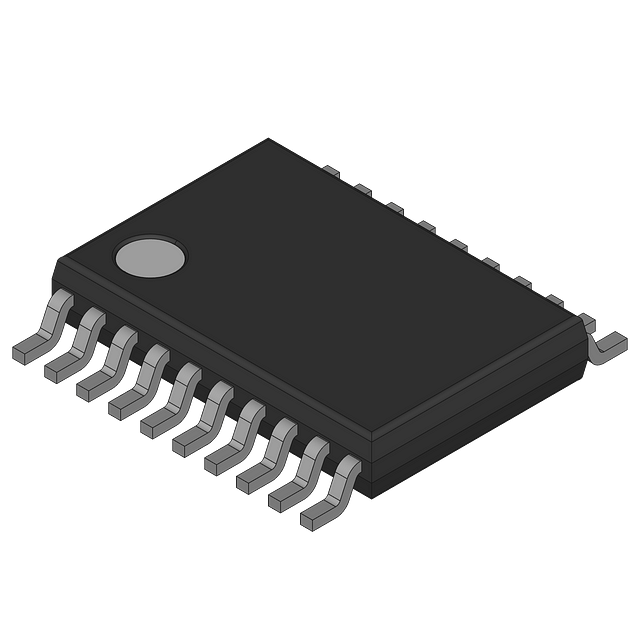

Texas Instruments LM5034MTC/NOPB technical specifications.
| Package/Case | TSSOP |
| Duty Cycle | 76% |
| Fall Time | 10ns |
| Frequency | 2MHz |
| Isolation | Non-Isolated |
| Max Duty Cycle | 76% |
| Max Frequency | 1MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 100V |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Operating Supply Current | 4.3mA |
| Output Current | 2.5A |
| Output Power | 600W |
| Output Voltage | 15V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LM5034 |
| Thickness | 1mm |
| Topology | Flyback |
| Weight | 0.006737oz |
| RoHS | Compliant |
Download the complete datasheet for Texas Instruments LM5034MTC/NOPB to view detailed technical specifications.
