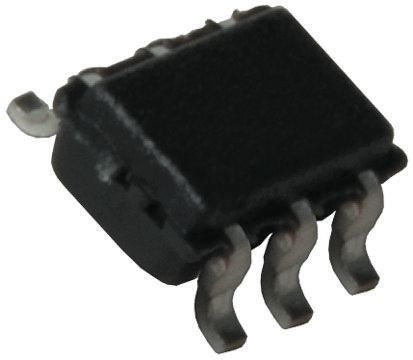

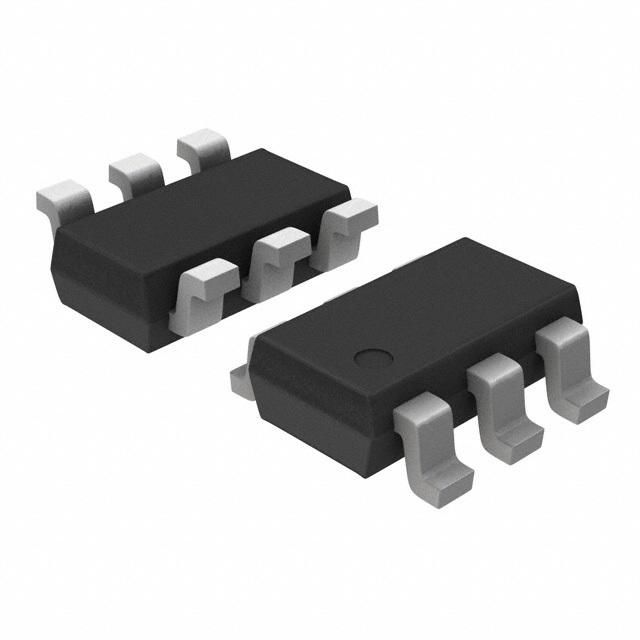

The LM5050MK-2/NOPB is a surface mount PowerWise OR controller in a SOT-23-6 package. It operates over a temperature range of -40°C to 125°C and has a maximum supply voltage of 75V and a maximum output voltage of 12V. The device has a quiescent current of 400uA and an operating supply current of 355uA. It is available in a tape and reel packaging and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM5050MK-2/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LM5050MK-2/NOPB technical specifications.
| Package/Case | SOT-23-6 |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 12V |
| Max Supply Voltage | 75V |
| Min Supply Voltage | 6V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Current | 355uA |
| Packaging | Tape and Reel |
| Quiescent Current | 400uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PowerWise® |
| Thickness | 870um |
| Turn-Off Delay Time | 450ns |
| Weight | 0.00127oz |
| Width | 1.75mm |
| RoHS | Compliant |
