Single-channel hot swap controller designed for positive voltage applications. Features a maximum operating voltage of 65V and a minimum operating voltage of 5.5V. Operates within a temperature range of -40°C to 125°C with a typical supply current of 1.4mA. Housed in a 10-pin VSSOP package measuring 3.1mm x 3.1mm x 0.95mm, this RoHS compliant component is supplied on tape and reel.
PackageVSSOP
Current1.4mA
Quick Jump:
Technical Specifications
Texas Instruments LM5060MM/NOPB technical specifications.
General
Package/Case
VSSOP
Channel Type
Single
Height
0.95mm
Lead Free
Lead Free
Length
3.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
24uA
Max Supply Voltage
65V
Min Supply Voltage
5.5V
Number of Drivers
1
Number of Inputs
5
Number of Outputs
2
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1.4mA
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM5060MM/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM5060MM/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

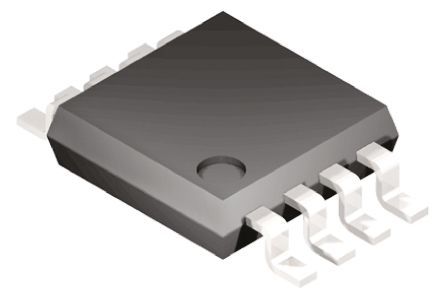

Product Images
