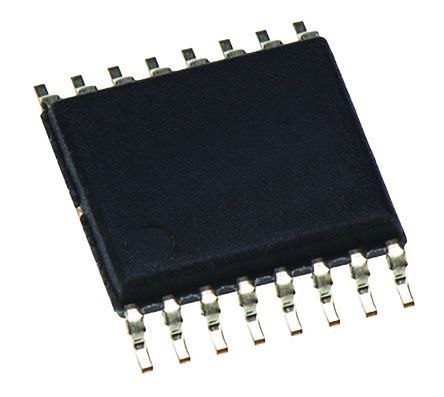

Wide input voltage DC/DC buck controller, operating from 4.5V to 75V, features current mode control for efficient power regulation. This non-synchronous controller supports a single positive output with a maximum output voltage of 70V and a maximum output current of 10A. It offers a high maximum switching frequency of 1MHz and a maximum duty cycle of 97%, with clock synchronization capability. Packaged in a compact 16-HTSSOP (5mm x 4.4mm x 0.8mm) for surface mounting, it operates across a wide temperature range of -40°C to 125°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM5088MH-1/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LM5088MH-1/NOPB technical specifications.
| Package/Case | HTSSOP |
| Clock Sync | Yes |
| Duty Cycle | 97% |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Duty Cycle | 94% |
| Max Frequency | 1MHz |
| Max Input Voltage | 75V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.205V |
| Max Supply Voltage | 13V |
| Min Supply Voltage | 8.3V |
| Mount | Surface Mount |
| Number of Output Phases | 1 |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 10A |
| Output Voltage | 70V |
| Packaging | Rail/Tube |
| Quiescent Current | 3.8mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PowerWise® |
| Synchronous Rectifier | No |
| Width | 4.4mm |
| RoHS | Compliant |
