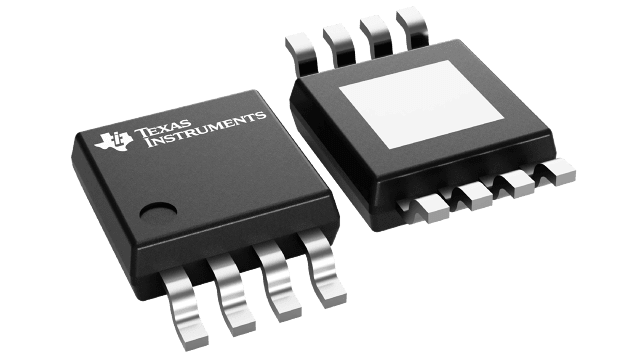

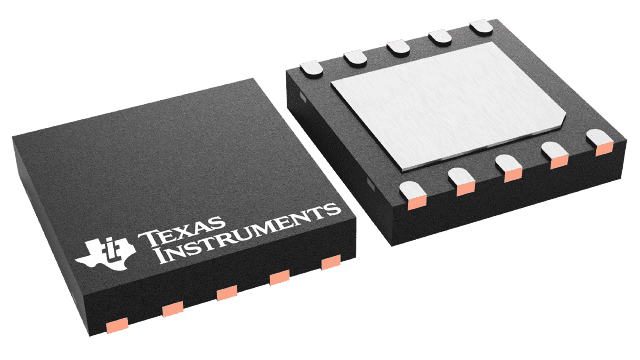

This device is a dual independent high-side and low-side gate driver for MOSFET half-bridge applications. It operates from a 9 V to 14 V supply and supports up to 100 V bootstrap supply voltage. The driver provides 1 A peak output current with typical 25 ns propagation delay and 10 ns typical rise and fall times. TTL-compatible inputs and typical 8 V undervoltage lockout are provided, and the operating temperature range is -40°C to 125°C. TI offers the family in HVSSOP-8, SOIC-8, and WSON-10 package options.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM5101C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bootstrap supply voltage (max) | 100V |
| Power switch | MOSFET |
| Input supply voltage (min) | 9V |
| Input supply voltage (max) | 14V |
| Peak output current | 1A |
| Operating temperature range | -40 to 125°C |
| Undervoltage lockout (typ) | 8V |
| Propagation delay time | 0.025µs |
| Rise time | 10ns |
| Fall time | 10ns |
| Iq | 0.01mA |
| Input threshold | TTL |
| Channel input logic | TTL |
| Switch node voltage | -1V |
| Driver configuration | Dual, Independent |
