Texas Instruments
LM5105SDX/NOPB

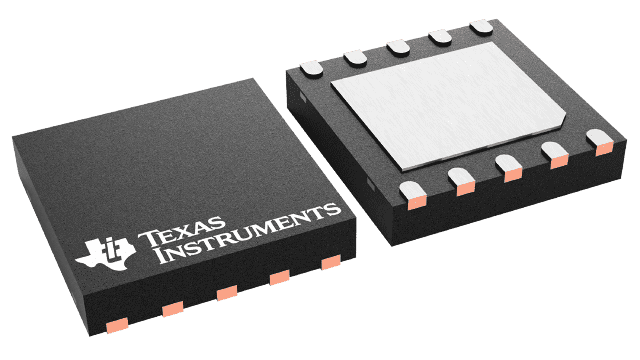

1.8-A, 1.6-A 100-V half bridge gate driver with 8-V UVLO and programmable dead-time 10-WSON -40 to 125
Voltage14V
Current1.65mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5105SDX/NOPB technical specifications.
General
| Fall Time | 15ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.8A |
| Max Supply Voltage | 14V |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Output Current | 1.8A |
| Package Quantity | 4500 |
| Packaging | Tape and Reel |
| Propagation Delay | 595ns |
| Quiescent Current | 400uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | LM5105 |
| Supply Current | 1.65mA |
| Turn-On Delay Time | 595ns |
| Voltage | 14V |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM5105SDX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM5105SDX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
