Current1.8mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5109BSDX technical specifications.
General
| Fall Time | 15ns |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Supply Voltage | 14V |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Output Current | 1A |
| Package Quantity | 4500 |
| Packaging | Tape and Reel |
| Propagation Delay | 32ns |
| Quiescent Current | 200uA |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Supply Current | 1.8mA |
| Turn-Off Delay Time | 2ns |
| Turn-On Delay Time | 2ns |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM5109BSDX Datasheet
Download the complete datasheet for Texas Instruments LM5109BSDX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

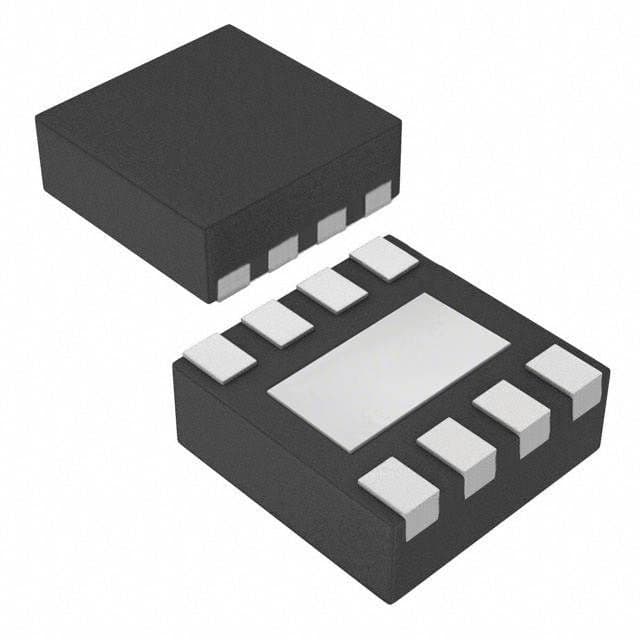

Product Images
