Texas Instruments
LM5109SD/NOPB
MOSFET DRVR 100V 1A 2-OUT Hi/Lo Side Half Brdg Non-Inv 8-Pin LLP EP T/R
Current2.1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5109SD/NOPB technical specifications.
General
| Fall Time | 15ns |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Supply Voltage | 14V |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Output Current | 1A |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Propagation Delay | 29ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | LM5109 |
| Supply Current | 2.1mA |
| Turn-Off Delay Time | 2ns |
| Turn-On Delay Time | 2ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM5109SD/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM5109SD/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

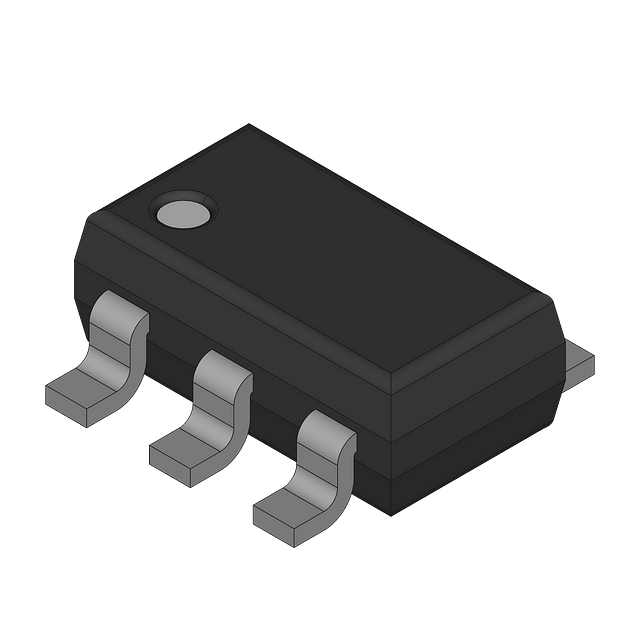

Product Images
