LM5110-1SD/NOPB
2-Ch Gate Driver, 5A Output, 3.5-14V Supply, 25ns Fall, 40ns Delay, 10-WSON
Dual channel gate driver featuring 5A peak output current per channel, 3.5V to 14V supply voltage range, and 40ns propagation delay. This surface mount component offers a 25ns fall time and operates across a -40°C to 125°C temperature range. Includes a shutdown input and dedicated input ground for enhanced control. Packaged in a 10-WSON format, this RoHS compliant device is ideal for power management applications.
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5110-1SD/NOPB technical specifications.
General
| Fall Time | 25ns |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Max Supply Current | 2mA |
| Max Supply Voltage | 14V |
| Min Supply Voltage | 3.5V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Output Current | 5A |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Propagation Delay | 40ns |
| Quiescent Current | 1mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | LM5110 |
| Supply Current | 2mA |
| Turn-On Delay Time | 40ns |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM5110-1SD/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM5110-1SD/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

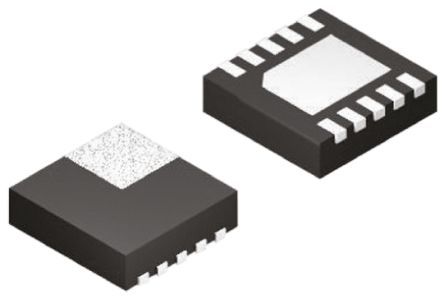

Product Images
