Single-channel MOSFET gate driver IC with 7A maximum output current. Features a 40ns propagation delay and 12ns fall time. Operates from a 3.5V to 14V supply voltage with a 2mA maximum supply current. Surface mountable in a 6-LLP package, measuring 3mm x 3mm x 0.8mm. RoHS compliant and lead-free.
Voltage5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5112SD/NOPB technical specifications.
General
| Channel Type | Single |
| Fall Time | 12ns |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 7A |
| Max Supply Current | 2mA |
| Max Supply Voltage | 14V |
| Min Supply Voltage | 3.5V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Operating Supply Current | 2mA |
| Output Current | 7A |
| Packaging | Tape and Reel |
| Propagation Delay | 40ns |
| Quiescent Current | 1mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Turn-On Delay Time | 40ns |
| Voltage | 5V |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM5112SD/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM5112SD/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

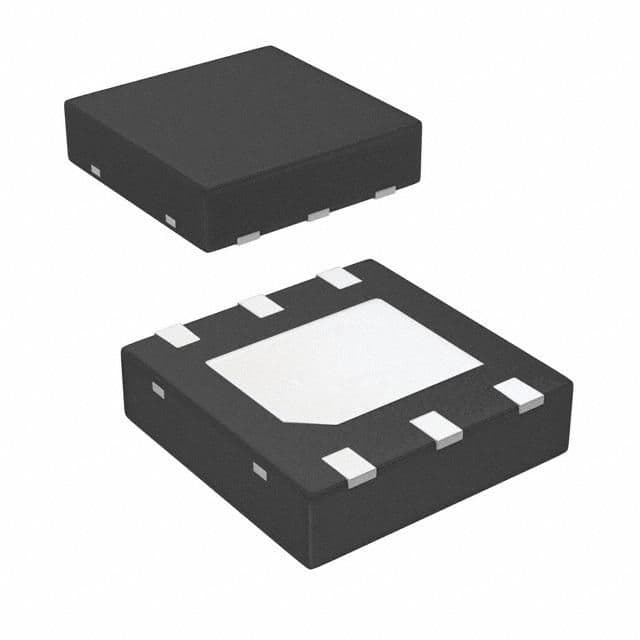

Product Images
