Single-channel MOSFET gate driver with 7A maximum output current, designed for low-side inversion and non-inversion applications. Features a 40ns propagation delay and 12ns fall time, operating from a 3.5V to 14V supply range. This surface mount component offers a maximum operating temperature of 125°C and is RoHS compliant.
Voltage5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5112SDX/NOPB technical specifications.
General
| Channel Type | Single |
| Fall Time | 12ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 7A |
| Max Supply Current | 2mA |
| Max Supply Voltage | 14V |
| Min Supply Voltage | 3.5V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Operating Supply Current | 2mA |
| Output Current | 7A |
| Packaging | Tape and Reel |
| Propagation Delay | 40ns |
| Quiescent Current | 1mA |
| RoHS Compliant | Yes |
| Voltage | 5V |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM5112SDX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM5112SDX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

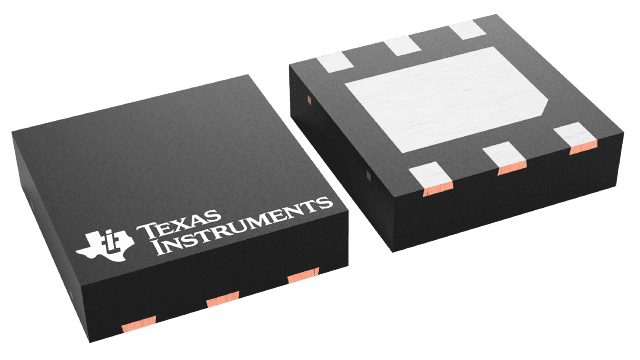

Product Images
