Dual-channel, half-bridge gate driver for GaNFETs, featuring 5A peak output current and 1.2A continuous output. Operates with a 4.5V to 5.5V supply voltage, ideal for 10W applications. Delivers fast switching with a 4ns fall time and 30ns propagation delay. Includes 2ns turn-on and turn-off delay times. Surface mountable in a 10-WSON package, RoHS compliant, and suitable for operation from -40°C to 125°C.
Current100uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5113SDX/NOPB technical specifications.
General
| Fall Time | 4ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Operating Supply Voltage | 5V |
| Output Current | 5A |
| Package Quantity | 4500 |
| Packaging | Tape and Reel |
| Propagation Delay | 30ns |
| RoHS Compliant | Yes |
| Series | LM5113 |
| Supply Current | 100uA |
| Turn-Off Delay Time | 2ns |
| Turn-On Delay Time | 2ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM5113SDX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM5113SDX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

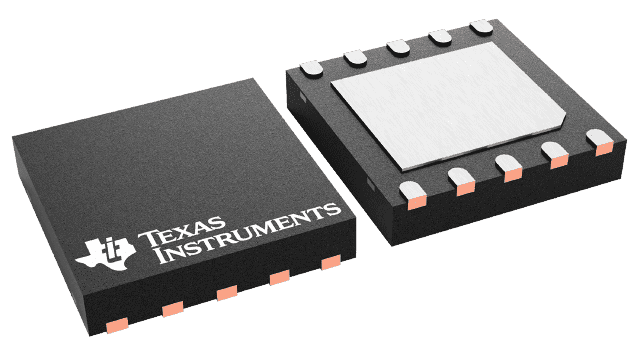

Product Images
