LM5114AMF/NOPB
7.6-A/1.3-A single channel gate driver with 4-V UVLO and split outputs 6-SOT-23 -40 to 125
PackageSOT-23-6
Current1.3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5114AMF/NOPB technical specifications.
General
Package/Case
SOT-23-6
Channel Type
Single
Fall Time
8ns
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
7.6A
Max Supply Voltage
12.6V
Min Supply Voltage
4V
Mount
Surface Mount
Number of Channels
1
Number of Drivers
1
Number of Outputs
2
On-State Resistance
310mR
Output Current
7.6A
Package Quantity
1000
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Current
1.3A
Turn-Off Delay Time
36ns
Turn-On Delay Time
36ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM5114AMF/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM5114AMF/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

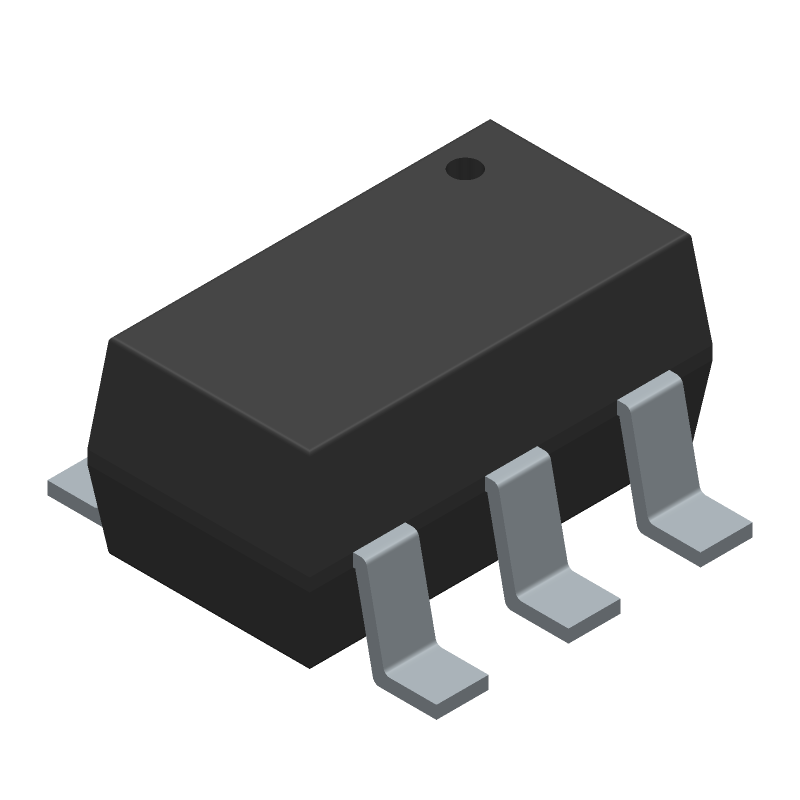

Product Images
