The LM5114BMF/NOPB is a single channel gate driver with a maximum output current of 7.6A and a maximum supply voltage of 12.6V. It is packaged in a SOT-23-6 package and is RoHS compliant. The device operates over a temperature range of -40°C to 125°C and has a propagation delay of 14ns. It is lead free and available in a tape and reel packaging with 1000 units per package.
PackageSOT-23-6
Current7.6A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5114BMF/NOPB technical specifications.
General
| Package/Case | SOT-23-6 |
| Channel Type | Single |
| Fall Time | 8ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 7.6A |
| Max Supply Voltage | 12.6V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Outputs | 2 |
| Output Current | 7.6A |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Propagation Delay | 14ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 7.6A |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM5114BMF/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM5114BMF/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

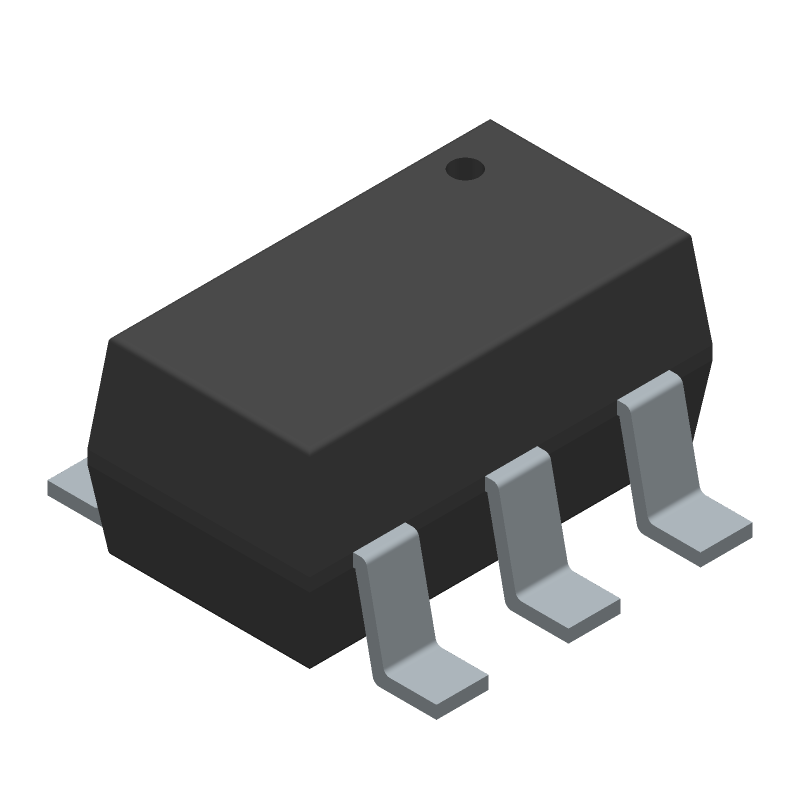

Product Images
