Texas Instruments

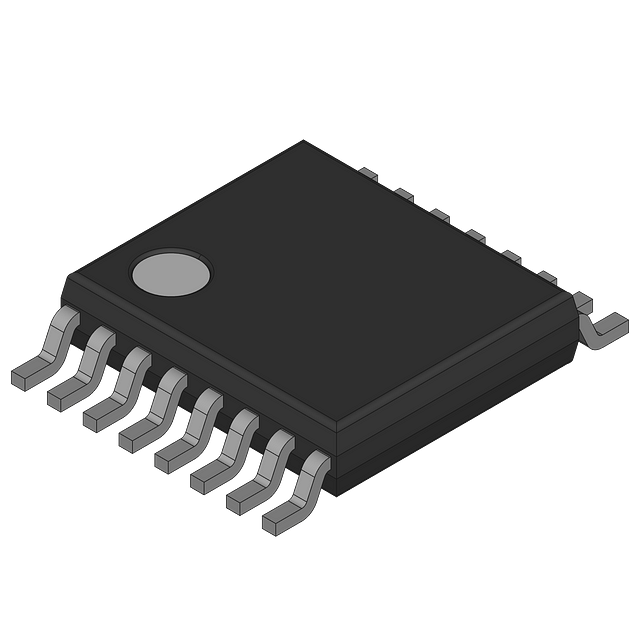

LM5115MTCX
75V, Secondary Side Post Regulator/ Synchronous Buck Controller 16-TSSOP -40 to 125
Frequency1MHz
PackageTSSOP
MountingSurface Mount
Power300W
Quick Jump:
Technical Specifications
Texas Instruments LM5115MTCX technical specifications.
General
| Package/Case | TSSOP |
| Duty Cycle | 85% |
| Lead Free | Contains Lead |
| Max Duty Cycle | 85% |
| Max Frequency | 1MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 7V |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Output Current | 20A |
| Output Power | 300W |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | No |
| Series | LM5115 |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments LM5115MTCX Datasheet
Download the complete datasheet for Texas Instruments LM5115MTCX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
