Quad operational amplifier featuring a 10MHz gain bandwidth product and 14V/µs slew rate. This general-purpose op-amp offers 4 channels with a 60dB common mode rejection ratio and 78dB power supply rejection ratio. It operates with a supply voltage range of 1.8V to 24V and a typical supply current of 390µA. The surface mount SOIC package is designed for automated assembly.
PackageSOIC
Current360uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM6134BIMX technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | SOIC |
| Common Mode Rejection Ratio | 60dB |
| Gain Bandwidth Product | 10MHz |
| Input Bias Current | 180nA |
| Input Offset Voltage (Vos) | 6mV |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 390uA |
| Output Current | 4mA |
| Output Current per Channel | 3.5mA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 78dB |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Slew Rate | 14V/µs |
| Supply Current | 360uA |
| Unity Gain Bandwidth Product | 10MHz |
| Voltage Gain | 100dB |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM6134BIMX Datasheet
Download the complete datasheet for Texas Instruments LM6134BIMX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

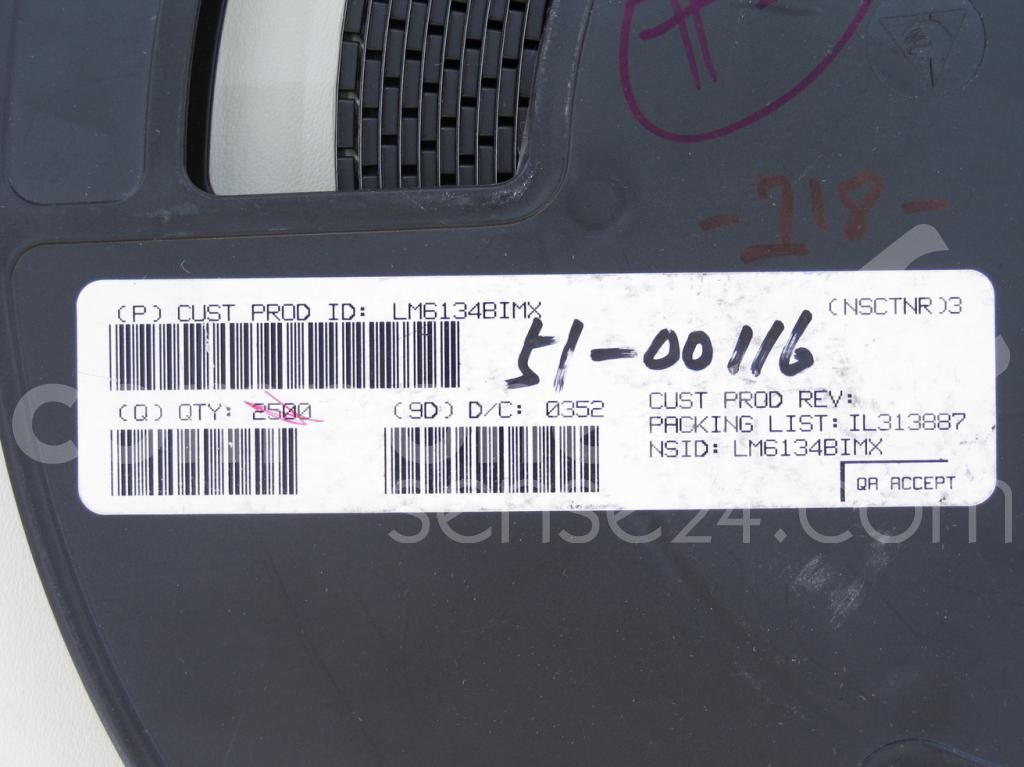

Product Images
