The LM6172AMJFQMLV is a dual operational amplifier from Texas Instruments. It features a gain bandwidth product of 80MHz and an output current of 85mA. The device is packaged in a CDIP package and is suitable for use in through-hole mounting applications. The LM6172AMJFQMLV operates over a temperature range of -55°C to 125°C and is available in rail/Tube packaging. However, it is not RoHS compliant and contains lead, making it less suitable for modern applications.
PackageCDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM6172AMJFQMLV technical specifications.
General
| Package/Case | CDIP |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 80MHz |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 2.75V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 5.5V |
| Mount | Through Hole |
| Number of Channels | 2 |
| Output Current | 85mA |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | No |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM6172AMJFQMLV Datasheet
Download the complete datasheet for Texas Instruments LM6172AMJFQMLV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

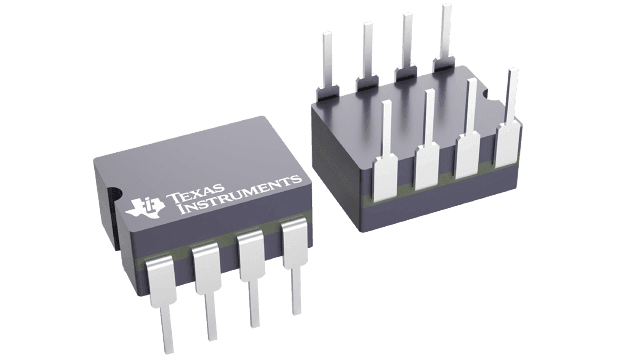

Product Images
