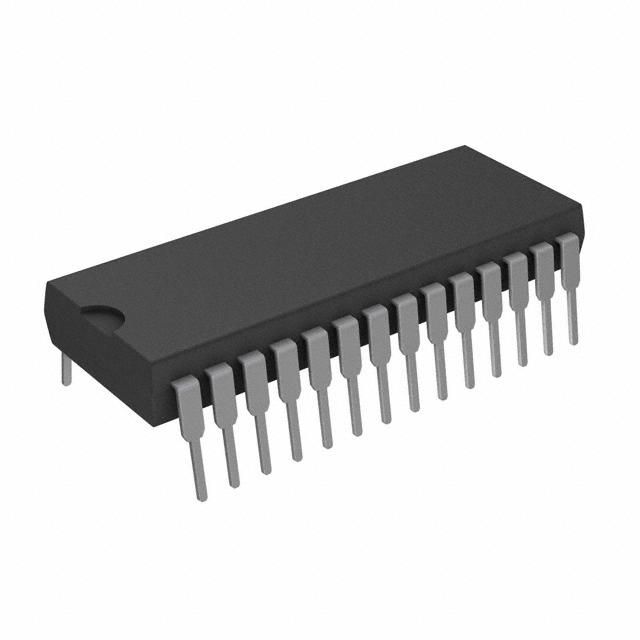

The LM629N-6/NOPB is an 8-channel servo motor driver from Texas Instruments, packaged in a PDIP-28 package. It operates over a temperature range of -40°C to 85°C and is powered by a supply voltage between 4.5V and 5.5V. The device has a maximum supply current of 110mA and an output voltage of 5.5V. It is available in a rail/tube packaging configuration with 13 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM629N-6/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PDIP |
| Height | 4.95mm |
| Interface | Parallel |
| Length | 39.75mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Motor Type | Servo |
| Mount | Through Hole |
| Number of Outputs | 8 |
| Output Current | 1.6mA |
| Output Voltage | 5.5V |
| Package Quantity | 13 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LM629 |
| Supply Current | 110mA |
| Width | 14.73mm |
| RoHS | Compliant |
Download the complete datasheet for Texas Instruments LM629N-6/NOPB to view detailed technical specifications.
