High-performance power operational amplifier in a TO-220-5 package, designed for through-hole mounting. Features a 5.5MHz gain bandwidth product, 3A output current, and 8V/µs slew rate. Offers a wide operating supply voltage range from 8V to 30V (dual) or 16V to 60V (single), with a maximum power dissipation of 30W. Boasts a 70dB common mode rejection ratio and 70dB power supply rejection ratio. This lead-free, RoHS compliant component operates from 0°C to 70°C.
PackageTO-220-5
Current18mA
MountingThrough Hole
Power30W
Quick Jump:
Technical Specifications
Texas Instruments LM675T/LF05 technical specifications.
General
| Amplifier Type | POWER |
| Package/Case | TO-220-5 |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 5.5MHz |
| Input Bias Current | 2uA |
| Input Offset Voltage (Vos) | 10mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 30V |
| Min Dual Supply Voltage | 8V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 60V |
| Min Supply Voltage | 16V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 30V |
| Output Current | 3A |
| Output Current per Channel | 3A |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Power Dissipation | 30W |
| Power Supply Rejection Ratio (PSRR) | 70dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 8V/µs |
| Supply Current | 18mA |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 5.5MHz |
| Voltage Gain | 90dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM675T/LF05 Datasheet
Download the complete datasheet for Texas Instruments LM675T/LF05 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

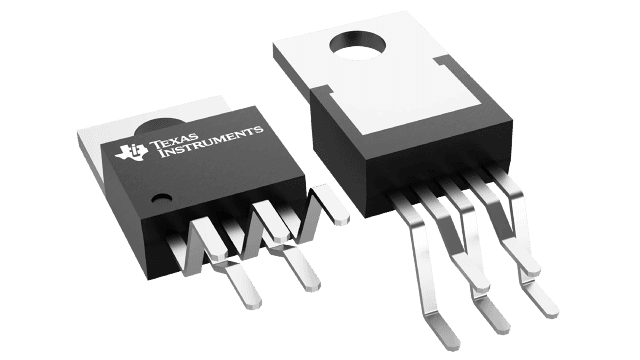

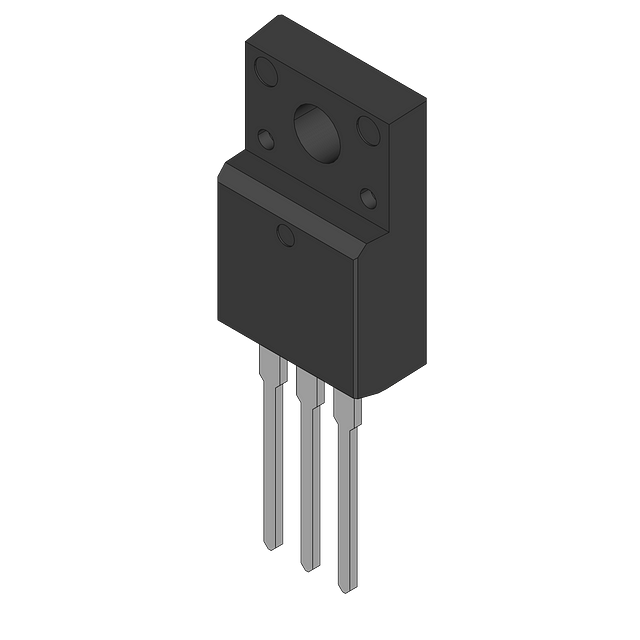

Product Images
