Texas Instruments
LM7171AMJFQMLV
High Speed Op Amp, 200MHz GBW, 4100V/µs Slew Rate, 100mA Output, 18V, CDIP
High-performance voltage feedback operational amplifier featuring a 200MHz gain bandwidth product and a rapid 4100V/µs slew rate. This single-channel amplifier delivers 100mA output current and boasts 75dB voltage gain with 80dB common mode rejection. Designed for through-hole mounting in an 8-pin CDIP package with tin-lead contact plating, it operates across a wide temperature range of -55°C to 125°C. Maximum power dissipation is 730mW, with an operating supply voltage of 18V and a maximum dual supply voltage of 18V.
PackageCDIP
Current6.5mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM7171AMJFQMLV technical specifications.
General
Package/Case
CDIP
Common Mode Rejection Ratio
80dB
Contact Plating
Tin, Lead
Gain Bandwidth Product
200MHz
Input Bias Current
12uA
Input Offset Voltage (Vos)
4mV
Lead Free
Contains Lead
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.75V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
730mW
Max Supply Voltage
36V
Min Supply Voltage
5.5V
Mount
Through Hole
Number of Channels
1
Operating Supply Voltage
18V
Output Current
100mA
Packaging
Rail/Tube
Radiation Hardening
Yes
RoHS Compliant
No
Slew Rate
4100V/µs
Supply Current
6.5mA
Voltage Gain
75dB
Compliance
RoHS
Not CompliantYes
Datasheet
Texas Instruments LM7171AMJFQMLV Datasheet
Download the complete datasheet for Texas Instruments LM7171AMJFQMLV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

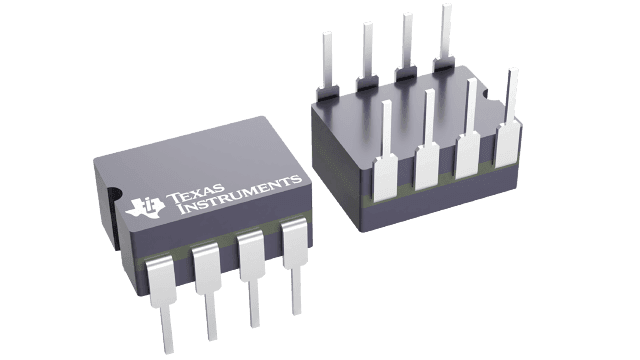

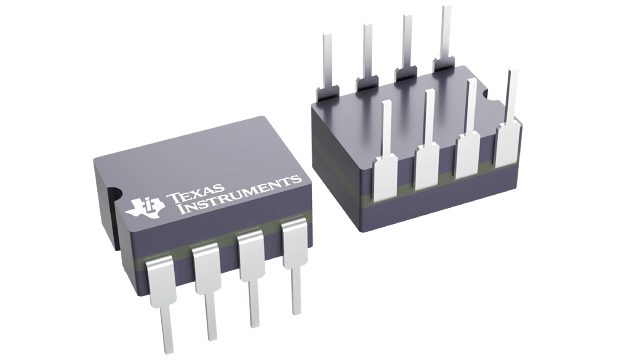

Product Images
