High-speed, single-channel voltage feedback operational amplifier featuring a 220MHz -3dB bandwidth and 4100V/µs slew rate. Delivers 118mA output current per channel with a 200MHz gain bandwidth product. Operates from dual supplies of ±2.75V to ±9V (or single supply 5.5V to 36V), with a maximum dual supply of ±18V. Housed in an 8-SOIC surface mount package, this RoHS compliant amplifier offers 70dB CMRR and 75dB PSRR.
PackageSOIC
Current6.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM7171BIM/NOPB technical specifications.
General
| -3db Bandwidth | 220MHz |
| Bandwidth | 200MHz |
| Package/Case | SOIC |
| Common Mode Rejection Ratio | 70dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 200MHz |
| Height | 1.45mm |
| Input Bias Current | 2.7uA |
| Input Offset Voltage (Vos) | 200uV |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 2.75V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 118mA |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 75dB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | VIP™ III |
| Slew Rate | 4100V/µs |
| Supply Current | 6.5mA |
| Unity Gain Bandwidth Product | 125MHz |
| Voltage Gain | 78dB |
| Width | 3.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM7171BIM/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM7171BIM/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

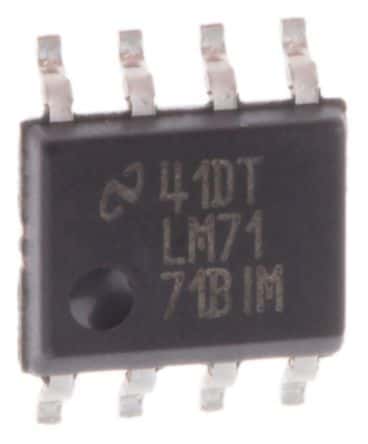

Product Images
