The LM723CH is a linear voltage regulator with an adjustable output voltage of 37V and a maximum output current of 150mA. It operates within a temperature range of 0°C to 70°C and is packaged in a TO-100 package with 10 pins. The device is suitable for use in applications where a stable voltage is required, and it can dissipate up to 800mW of power. The LM723CH is not RoHS compliant and contains lead, making it a non-lead-free component.
PackageTO-100
MountingThrough Hole
PolarityPositive
Power800mW
Quick Jump:
Technical Specifications
Texas Instruments LM723CH technical specifications.
General
| Package/Case | TO-100 |
| Dropout Voltage | 40mV |
| Lead Free | Contains Lead |
| Max Input Voltage | 40V |
| Min Input Voltage | 9.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 150mA |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Packaging | Box |
| Polarity | Positive |
| Power Dissipation | 800mW |
| Quiescent Current | 400uA |
| Radiation Hardening | No |
| RoHS Compliant | No |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM723CH Datasheet
Download the complete datasheet for Texas Instruments LM723CH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

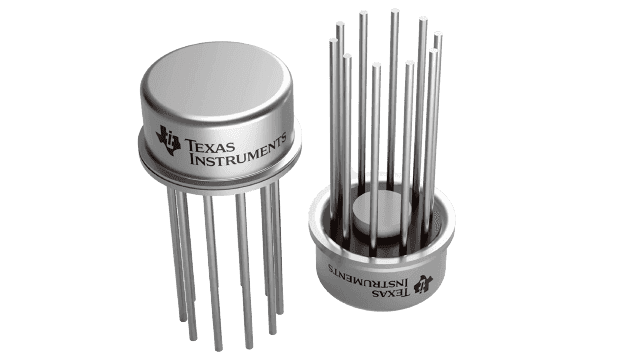

Product Images
