Adjustable output linear voltage regulator (LDO) with a maximum output current of 150mA. Features an adjustable output voltage range from 2V to 37V, with a maximum input voltage of 40V. Operates across a wide temperature range of -55°C to 150°C. This through-hole mounted component offers a 7.15V reference voltage and 3% tolerance.
PackageTO-100
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM723H/NOPB technical specifications.
General
| Package/Case | TO-100 |
| Lead Free | Lead Free |
| Max Input Voltage | 40V |
| Min Input Voltage | 9.5V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 37V |
| Min Output Voltage | 2V |
| Mount | Through Hole |
| Number of Regulators | 1 |
| Output Current | 150mA |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Packaging | Bulk |
| Quiescent Current | 400uA |
| Reach SVHC Compliant | No |
| Reference Voltage | 7.15V |
| RoHS Compliant | Yes |
| Tolerance | 3% |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM723H/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM723H/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

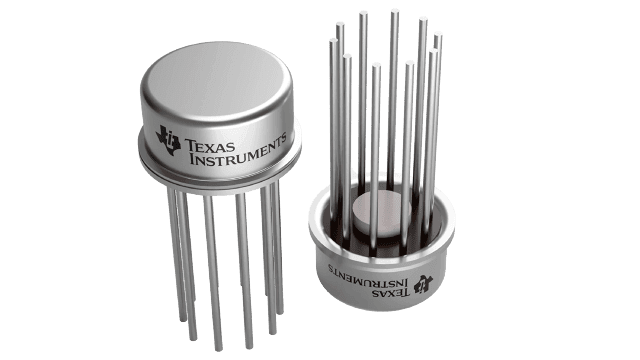

Product Images
