Single-channel, Rail-to-Rail Input/Output operational amplifier featuring 20MHz bandwidth and 100mA output current per channel. This CMOS amplifier offers a 1.1mA supply current and a 18V/µs slew rate, suitable for operation with dual supply voltages from +/-1.25V to +/-15V or single supply from 2.5V to 32V. Packaged in an 8-SOIC surface mount case, it operates across a -40°C to 125°C temperature range and boasts a 65dB CMRR and 78dB PSRR.
PackageSOIC
Current1.1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM7321MA/NOPB technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 20MHz |
| Package/Case | SOIC |
| Common Mode Rejection Ratio | 65dB |
| Gain Bandwidth Product | 20MHz |
| Height | 1.45mm |
| Input Bias Current | 1.1uA |
| Input Offset Voltage (Vos) | 700uV |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Dual Supply Voltage | 16V |
| Min Dual Supply Voltage | 1.25V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 1.1mA |
| Output Current per Channel | 100mA |
| Package Quantity | 95 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 78dB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PowerWise® |
| Slew Rate | 18V/µs |
| Supply Current | 1.1mA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 16MHz |
| Voltage Gain | 80dB |
| Width | 3.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM7321MA/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM7321MA/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

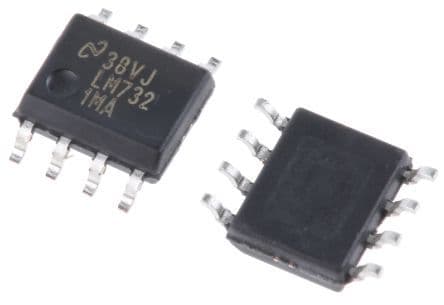

Product Images
