Texas Instruments
LM73CIMK-0/NOPB
±1°C Temperature Sensor with I2C/SMBus Interface 6-SOT-23-THIN -40 to 150
PackageSOT-23-6
Current320uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM73CIMK-0/NOPB technical specifications.
General
| Package/Case | SOT-23-6 |
| Interface | I2C, SMBus, 2-Wire, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Bits | 14 |
| Output Current | 2uA |
| Output Type | Digital, I2C |
| Output Voltage | 400mV |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Quiescent Current | 495uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 14b |
| Supply Current | 320uA |
| Termination | SMD/SMT |
| Thickness | 870um |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM73CIMK-0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM73CIMK-0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

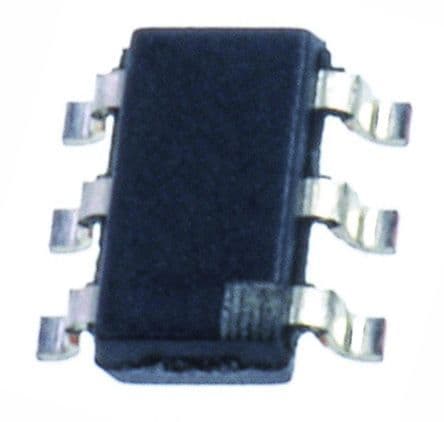

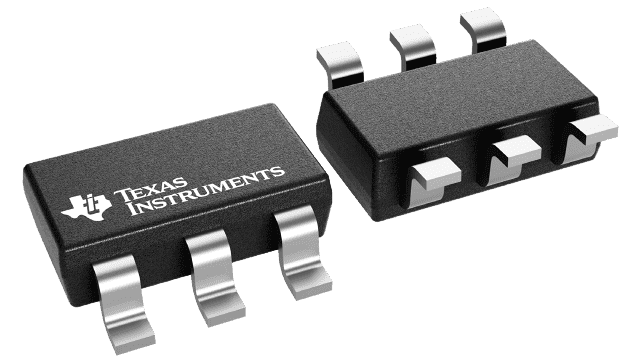

Product Images
