Single general purpose operational amplifier featuring a 1MHz bandwidth and 1.5MHz gain bandwidth product. This bipolar technology amplifier offers a high voltage gain of 96dB, a slew rate of 0.5V/µs, and an output current of 25mA per channel. It operates with dual supply voltages ranging from ±5V to ±18V or single supply from 10V to 36V, with a maximum power dissipation of 500mW. The component is housed in an 8-pin DIP package for through-hole mounting and operates within a temperature range of 0°C to 70°C.
PackageDIP
Voltage36V
Current1.7mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM741CN/NOPB technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1MHz |
| Package/Case | DIP |
| Common Mode Rejection Ratio | 70dB |
| Gain | 96dB |
| Gain Bandwidth Product | 1.5MHz |
| Height | 3.3mm |
| Input Bias Current | 80nA |
| Input Offset Voltage (Vos) | 2mV |
| Lead Free | Lead Free |
| Length | 9.27mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 10V |
| Mount | Through Hole |
| Number of Amplifiers | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 1.7mA |
| Output Current per Channel | 25mA |
| Packaging | Rail/Tube |
| Power Dissipation | 500mW |
| Power Supply Rejection Ratio (PSRR) | 77dB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.5V/µs |
| Supply Current | 1.7mA |
| Technology | BIPOLAR |
| Thickness | 3.9mm |
| Voltage | 36V |
| Voltage Gain | 106.02dB |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM741CN/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM741CN/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

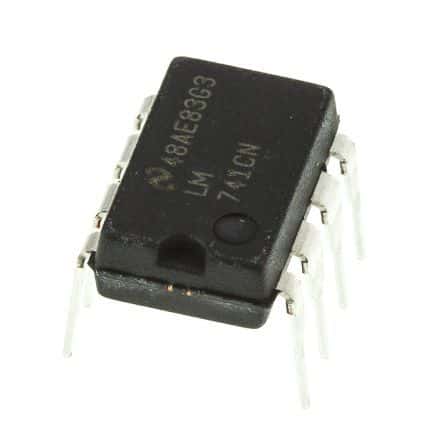

Product Images
