Single-channel operational amplifier featuring a CDIP package for through-hole mounting. This bipolar IC offers a wide operating temperature range from -55°C to 125°C, with a maximum dual supply voltage of 22V and a minimum of 5V. Key performance specifications include a 250kHz unity gain bandwidth product, 0.5V/µs slew rate, 5mV input offset voltage, and 1.5µA input bias current. The device provides a 70dB common mode rejection ratio and a 77dB power supply rejection ratio, with a voltage gain of 106.02dB and 25mA output current.
PackageCDIP
MountingThrough Hole
Power500mW
Quick Jump:
Technical Specifications
Texas Instruments LM741J/883 technical specifications.
General
| Package/Case | CDIP |
| Common Mode Rejection Ratio | 70dB |
| Dual Supply Voltage | 9.121518MV |
| Height | 5.08mm |
| Input Bias Current | 1.5uA |
| Input Offset Voltage (Vos) | 5mV |
| Lead Free | Contains Lead |
| Length | 10.16mm |
| Max Dual Supply Voltage | 22V |
| Min Dual Supply Voltage | 5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 25mA |
| Packaging | Rail/Tube |
| Power Dissipation | 500mW |
| Power Supply Rejection Ratio (PSRR) | 77dB |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Slew Rate | 0.5V/µs |
| Technology | BIPOLAR |
| Thickness | 4.064mm |
| Unity Gain Bandwidth Product | 250kHz |
| Voltage Gain | 106.02dB |
| Width | 6.502mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM741J/883 Datasheet
Download the complete datasheet for Texas Instruments LM741J/883 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

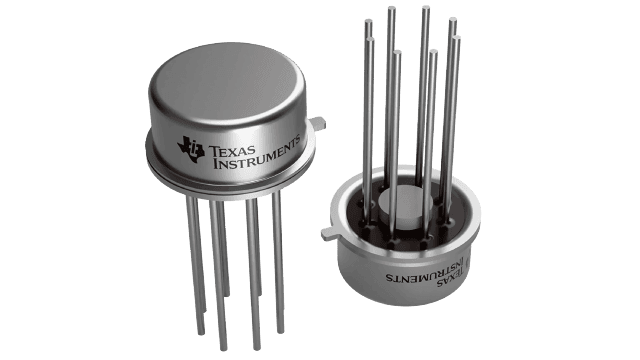

Product Images
