Digital temperature sensor with SPI interface, offering 12-bit resolution and ±1.25°C accuracy. Features a wide operating temperature range from -40°C to 125°C and a supply voltage range of 3V to 5.5V. Surface mountable in an 8-SOIC package, this lead-free and RoHS compliant component is supplied on tape and reel.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM74CIMX-3/NOPB technical specifications.
General
| Package/Case | SOIC |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 3V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 13 |
| Operating Supply Current | 265uA |
| Output Type | Digital, SPI |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Quiescent Current | 520uA |
| Radiation Hardening | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM74CIMX-3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM74CIMX-3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

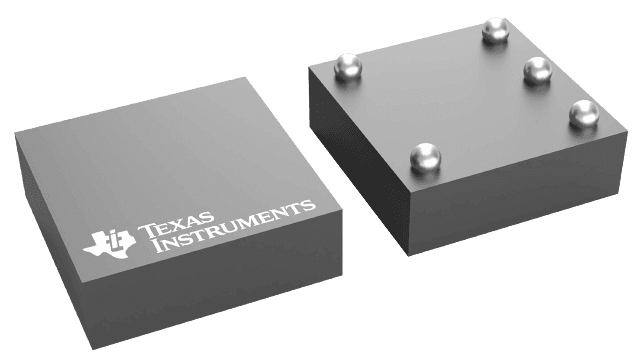

Product Images
