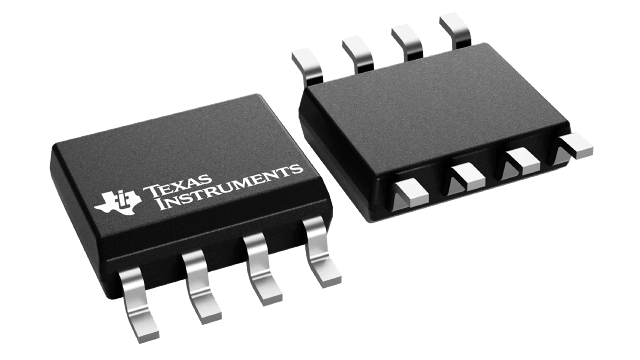

Digital temperature sensor with I2C/SMBus interface, offering ±2°C accuracy over a -55°C to 125°C operating range. Features a 3.0V to 5.5V supply voltage and 9-bit resolution. This surface-mount component is housed in an 8-SOIC package and operates with a typical supply current of 250µA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM75BIM-3/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Interface | I2C, SMBus, 2-Wire, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 3V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 9 |
| Operating Supply Current | 280uA |
| Output Current | 10uA |
| Output Type | Digital, I2C |
| Packaging | Rail/Tube |
| Quiescent Current | 500uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 9b |
| RoHS Compliant | Yes |
| Supply Current | 250uA |
| RoHS | Compliant |
Download the complete datasheet for Texas Instruments LM75BIM-3/NOPB to view detailed technical specifications.
