Positive fixed 5V output linear voltage regulator with 1A maximum output current. Features a 2V dropout voltage and 2% accuracy, operating from a 10V to 35V input voltage range. This through-hole component is housed in a TO-220 package, with a maximum operating temperature of 125°C.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM7805CT/NOPB technical specifications.
General
Accuracy
2%
Package/Case
TO-220
Dropout Voltage
2V
Height
8.89mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
35V
Min Input Voltage
10V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1A
Mount
Through Hole
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
8.5mA
Radiation Hardening
No
RoHS Compliant
Yes
Thickness
4.572mm
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM7805CT/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM7805CT/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

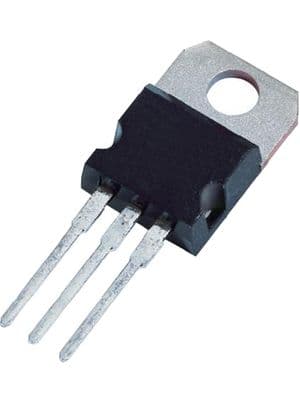

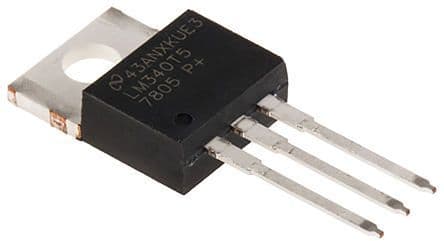

Product Images
