PackageTO-226-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM78L05ACZ/LFT1 technical specifications.
General
| Accuracy | 5% |
| Package/Case | TO-226-3 |
| Max Input Voltage | 35V |
| Min Input Voltage | 6.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Power Dissipation | 750mW |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 100mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 1800 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 62dB |
| Quiescent Current | 5mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Thickness | 3.6mm |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM78L05ACZ/LFT1 Datasheet
Download the complete datasheet for Texas Instruments LM78L05ACZ/LFT1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

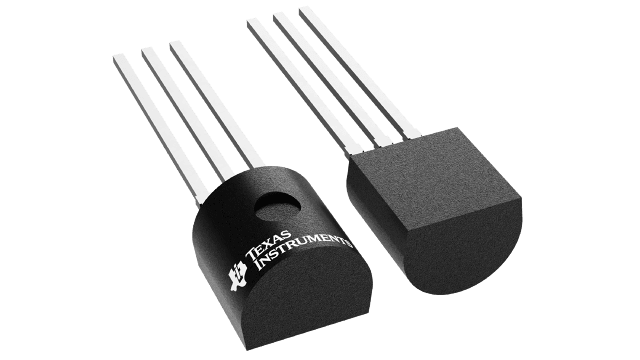

Product Images
