Positive fixed 15V linear voltage regulator with 100mA output current and 5% accuracy. Features a 1.6V dropout voltage and a maximum input voltage of 35V. Operates across a wide temperature range of -40°C to 125°C. Packaged in a TO-92 through-hole mount.
PackageTO-92
MountingThrough Hole
PolarityPositive
Power750mW
Quick Jump:
Technical Specifications
Texas Instruments LM78L15ACZ/NOPB technical specifications.
General
| Accuracy | 5% |
| Package/Case | TO-92 |
| Dropout Voltage | 1.6V |
| Height | 5.2mm |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Max Input Voltage | 35V |
| Min Input Voltage | 16.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Output Voltage | 15V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 100mA |
| Output Type | Fixed |
| Output Voltage | 15V |
| Output Voltage Accuracy | 5% |
| Packaging | Bulk |
| Polarity | Positive |
| Power Dissipation | 750mW |
| Power Supply Rejection Ratio (PSRR) | 51dB |
| Quiescent Current | 3mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| Width | 4.19mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM78L15ACZ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM78L15ACZ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

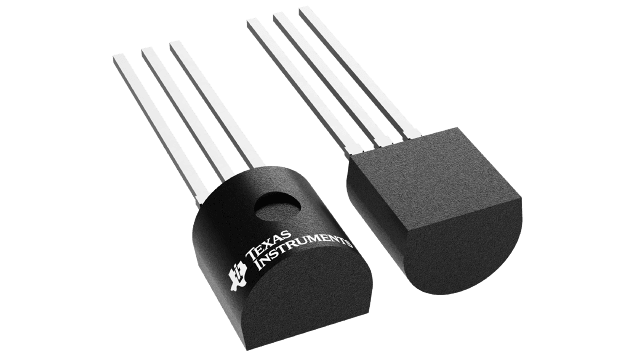

Product Images
