Negative linear voltage regulator, fixed output voltage of -15V with a 4% accuracy. Features a maximum output current of 1.5A and a dropout voltage of 1.1V. Operates within a temperature range of 0°C to 125°C and supports a maximum input voltage of -35V. Packaged in a TO-220 through-hole mount.
PackageTO-220
MountingThrough Hole
PolarityNegative
Quick Jump:
Technical Specifications
Texas Instruments LM7915CT/NOPB technical specifications.
General
Accuracy
4%
Package/Case
TO-220
Dropout Voltage
1.1V
Height
8.89mm
Lead Free
Lead Free
Length
10.16mm
Max Input Voltage
-35V
Min Input Voltage
-23V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Max Output Voltage
-15.6V
Min Output Voltage
-15V
Mount
Through Hole
Nominal Output Voltage
-15V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Negative
Output Current
1.5A
Output Type
Fixed
Output Voltage
-15V
Output Voltage Accuracy
4%
Packaging
Rail/Tube
Polarity
Negative
Power Supply Rejection Ratio (PSRR)
70dB
Quiescent Current
1.5mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Tolerance
5%
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM7915CT/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM7915CT/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

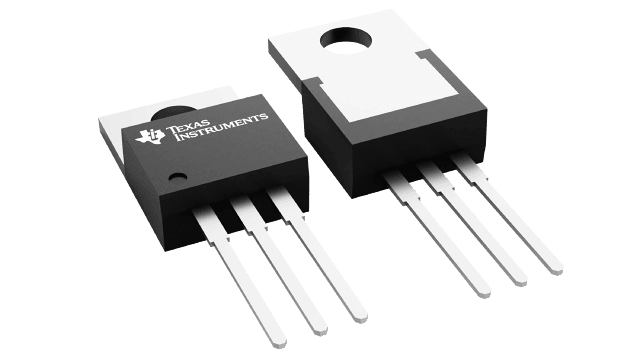

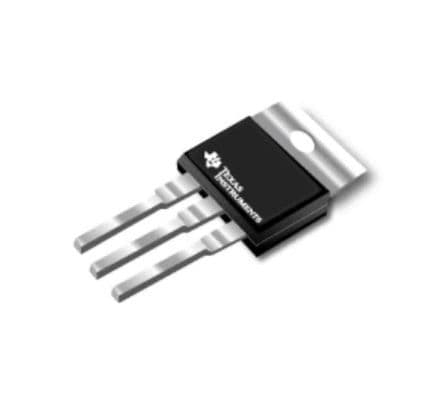

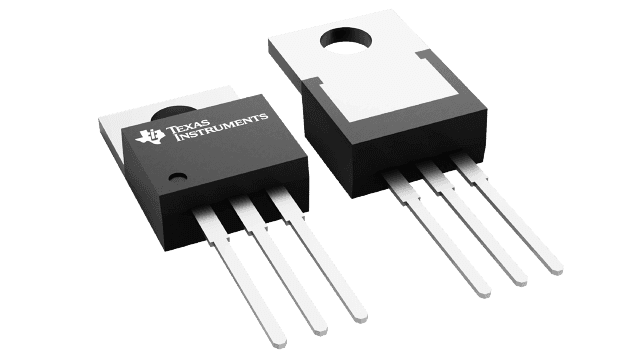

Product Images
